Steam Boilers

GASPAC / OILPAC

CBL GASPAC Boiler is a three-pass, wet back, fully packaged boiler designed to deliver high combustion and thermal efficiencies. It is designed to fire liquid and gaseous fuels.

Superior Desgin Features

The true three-pass design ensures efficient heat transfer and low flue gas exit temperatures for high thermal efficiencies. It is equipped with latest automation and mutli fuel compatibility

• Large furnace size to avoid flame impingement on pressure parts
• Large water and steam space in the boiler to meet high fluctuating loads
• Large heat transfer area gurantees lower heat flux and lower thermal stress
• Low water level and high steam pressure locks

INPAC — Compact 3-Pass Smoke Tube Boiler

The CBL INPAC is a compact, 3-pass smoke tube boiler with a tube design that maximises heat transfer while minimising refractory requirements. It is designed for plants requiring reliable, consistent steam in the small-to-medium capacity range — where space is limited and low-maintenance operation is a priority.

EFFYPAC — Shop-Assembled Plug-and-Play Boiler

The CBL EFFYPAC is a skid-mounted, shop-assembled, plug-and-play boiler that continues CBL's tradition of excellence, efficiency, and low-cost heat technology. Designed for fast deployment and minimal on-site erection, the EFFYPAC is the ideal solution for plants needing to commission quickly or expand steam capacity with minimum civil and installation work.

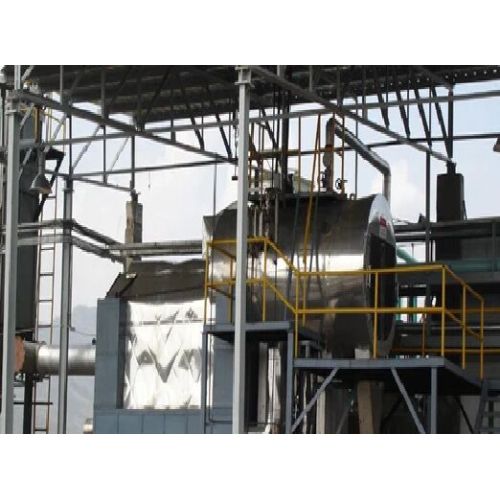

ENERGYPAC / ENERGYPAC PLUS — Hybrid Biomass Boiler

The CBL ENERGYPAC and ENERGYPAC PLUS combine water tube and smoke tube design principles to deliver a boiler optimised for biomass fuels — offering excellent combustion efficiency, superior steam quality, and high responsiveness to fluctuating industrial loads.

The ENERGYPAC PLUS is designed for higher-capacity applications and for plants requiring additional fuel flexibility.

EPAC & EPAC PLUS — Biomass / Multi-fuel Hybrid Boiler

The CBL EPAC and EPAC PLUS bring together the best of water tube and smoke tube design technologies — delivering the most efficient and economical energy solution for plants using biomass and agro-waste fuels. The EPAC PLUS specifically features a large grate designed to burn high-moisture fuels like wood chips and wet agro-wastes that other boilers struggle to combust efficiently.

GASPAC / OILPAC — Packaged Fire Tube Boiler

Upload to: /cbl-gaspac-boiler.htm and /oil-pac (update existing pages)

The CBL GASPAC / OILPAC is a three-pass, wet-back, fully packaged boiler designed to deliver high combustion and thermal efficiencies. It is engineered to fire liquid and gaseous fuels — making it the preferred choice for plants with natural gas, LPG, CNG, furnace oil, LSHS, HSD, or LDO supply.

SEACPL supplies and engineers GASPAC / OILPAC boilers for industries requiring reliable, clean-burning steam generation with minimal on-site erection and fast commissioning.

HYPAC — High-Efficiency Solid Fuel Packaged Boiler

The CBL HYPAC is the most proficient and economical solid-fuel fired packaged boiler available to process industries. Its unique design combines a large smoke tube section with superior water holding capacity and a large water-steam interface area — delivering 98% dry steam quality consistently.

SEACPL recommends HYPAC for plants with access to coal, biomass, or multi-fuel supply where reliable, high-efficiency steam is required with a compact, manageable footpri

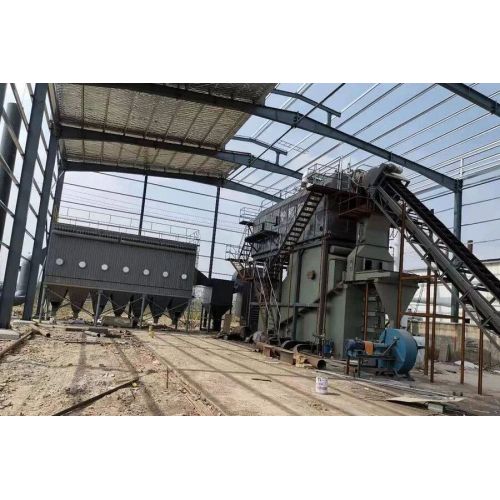

Reciprocating Grate Boiler — Advanced Multi-Fuel Biomass Power Boiler

The CBL Reciprocating Grate Boiler is an advanced, multi-fuel biomass fired power boiler designed for high-capacity steam and power generation applications. Built on a Three Pass Water Wall design with hydraulically driven reciprocating grate technology, it is engineered to fire challenging biomass fuels — including high-moisture content fuels up to 50–55% moisture — that conventional fixed-grate boilers cannot handle efficiently.

With over 2,500 working installations worldwide and CBL's full suite of global certifications, this boiler is the choice for industries requiring large-scale, fuel-flexible, reliable steam and power generation from biomass and agro-waste fuels.

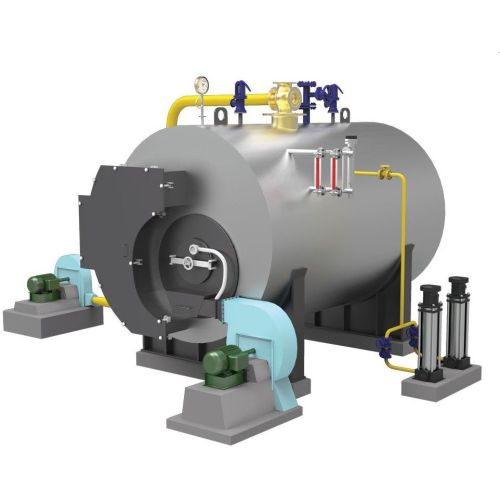

STEAM MARSHAL

CBL Steam Marshal is a three-pass, wetback, integral furnace high-performing rice husk-fired is designed to provide maximum output at a considerably lower operating cost.

Design advantages

The Bubbling Bed combustion technology enables higher residence time and facilitates complete combustion to enhance boiler efficiency further

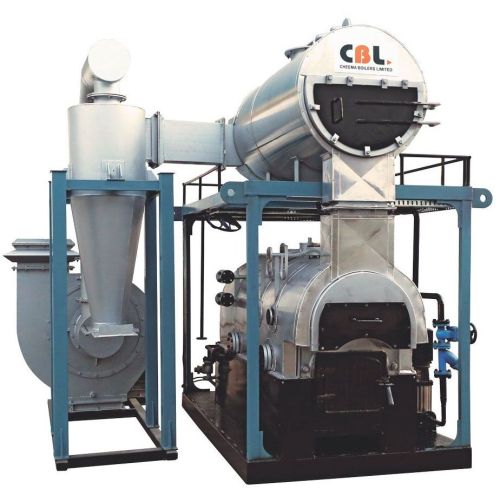

The CBL STEAMMAX is a compact, shop-assembled boiler designed for small steam requirements — where reliability, low maintenance, and ease of operation are the primary requirements. Available in capacities from 300 kg/hr to 1,500 kg/hr, the STEAMMAX offers safety and reliability with unmatched cost benefits.
