| Business Type | Supplier, Trader |
| Fuel Type | Biomass And Agro-waste Fuels |
| Boiler Mounting | Horizontal |
| Efficiency | Most Efficient And Economical Energy Solution |
| Click to view more | |
Product Details
Application
Plants Using Biomass And Agro-waste Fuels
Type
Biomass / Multi-fuel Hybrid Boiler
Grate Design
Large Grate Designed For High-moisture Fuels Like Wood Chips And Wet Agro-wastes
Combustion Efficiency
Efficient Combustion Of High-moisture Fuels

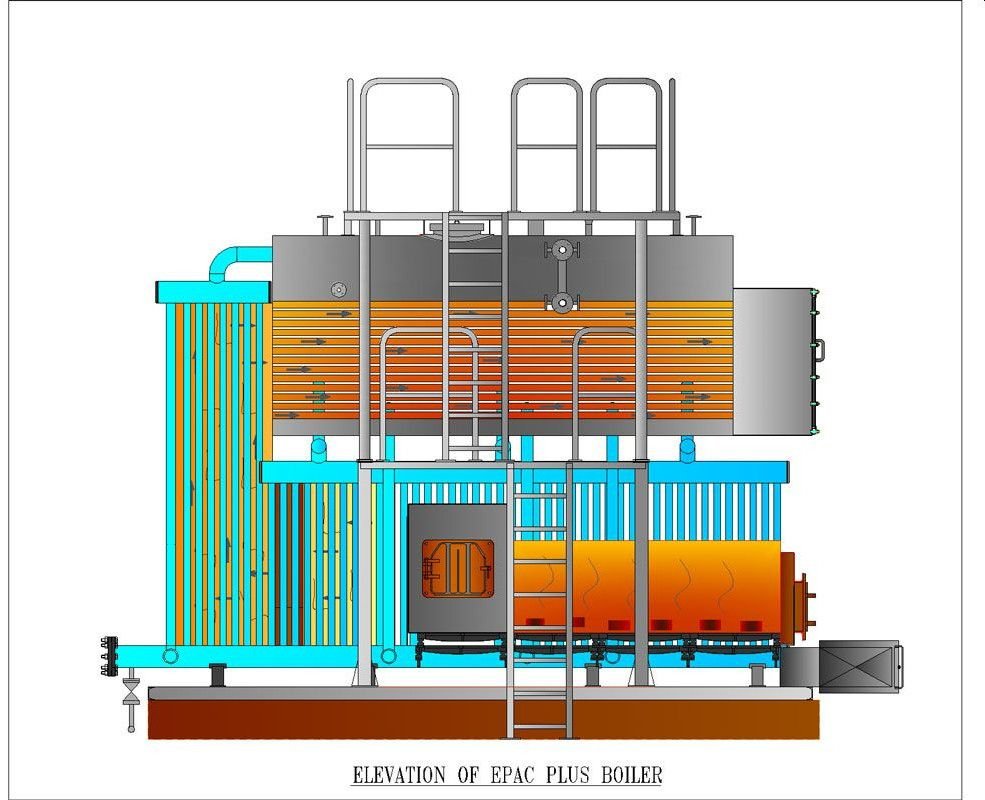

EPAC & EPAC PLUS — Biomass / Multi-fuel Hybrid Boiler
The CBL EPAC and EPAC PLUS bring together the best of water tube and smoke tube design technologies — delivering the most efficient and economical energy solution for plants using biomass and agro-waste fuels. The EPAC PLUS specifically features a large grate designed to burn high-moisture fuels like wood chips and wet agro-wastes that other boilers struggle to combust efficiently.
Key Design Features
-
Membrane panel water wall furnace — absorbs maximum heat from combustion
-
Large furnace volume — ensures better combustion and lower unburnt losses
-
Large water/steam interface area — ensures consistently dry steam
-
Responsive to surge and fluctuating loads — higher water holding capacity absorbs demand spikes
-
Swirling air injection — ensures better post-combustion burning of biomass fuels
-
Water tube technology advantages — better response to surge loads, quick start-up, lower heat loss
-
EPAC PLUS: enlarged grate for high-moisture, low-calorific-value biomass fuels
Ideal Applications
-
Textile dyeing and processing plants — using cotton stalks, rice husk, or wood
-
Sugar mills and distilleries — using bagasse as primary fuel
-
Food processing and rice milling
-
Agro-industry clusters where multiple biomass fuels are available seasonally
-
Pulp and paper — using wood chips and bark
Why SEACPL Recommends EPAC / EPAC PLUS
The EPAC range is SEACPL's recommendation when fuel diversity is important — when a plant needs to switch between biomass types based on seasonal availability and cost. The hybrid design delivers superior steam quality and surge load handling compared to a conventional smoke-tube boiler at the same capacity.
